Vantage Vue® Wireless Weather Station

Vantage Vue wireless weather station, Vantage Vue, wireless, weather stationThis wireless weather station provides accurate, reliable weather monitoring in a self-contained, easy-to-install system. Includes outdoor sensor array and LCD console.

Mounting hardware included; mounting pole sold separately.

Features

The new Davis Vantage Vue weather station combines Davis' legendary accuracy and rugged durability into a compact station that's easy to set up and use. Vantage Vue includes a sleek but tough outdoor sensor array and a distinctive LCD console. Its unique Weather Center function provides additional information on each weather variable. In addition, Davis has made Vantage Vue radio-compatible with our flagship Vantage Pro2 professional stations so you can mix-and-match most components.

Station Includes:

- Integrated Sensor Suite including temperature, wind, and rain sensors
- Console
- Mounting hardware (mounting pole sold separately

Console

  • TIME & DATE
    View the current time and date or time of sunrise/sunset.
  • MOON PHASE
    See the eight phases of the moon from new to full.
  • TEMPERATURE & HUMIDITY
    Console updates outside temperature every 10 seconds and inside temperature every minute. In addition, outside humidity Updates every 50 seconds and inside humidity every minute.
  • RETRANSMITS
    Main console can extend range to additional consoles up to 1,000 ft. (300 m).
  • BAROMETER
    Five-position trend arrow shows whether barometric pressure is rising, falling, or stable.
  • VARIABLE DISPLAY OPTIONS
    See updated variables every 10 seconds for heat index and wind chill to get a better "feel" for the outside environment.
  • RAIN
    Console updates rain totals and rain rate every 20 seconds for the last 25 hours, days, months.
  • "CHANGE IN WEATHER SINCE YESTERDAY" FEATURE
    Allows comparisons of changes of temperature and barometric pressure from day to day.
  • WEATHER CENTER
    Weather Center provides additional information for each weather variable, such as daily highs and lows, temperature changes by the hour and barometric value changes. Also displays astronomical data such as meteor showers.
  • USER-FRIENDLY KEYPAD
    Domed buttons are easy to sense and press. Glow-in-the-dark keypad buttons give you access to weather information all day and all night. The Done key returns user to "current" screen from anywhere in the program.
  • GRAPHS
    Graph the last 25 hours, days or months. View up to 50 graphs including temperature, rain, rain rate, wind and barometric pressure—all on the console.
  • "THIS TIME YESTER DAY" FEATURE
    Data point on the graph indicates the weather during the same time yesterday to help compare and analyze day-to-day weather trends.
  • ALARMS
    Set 22 simultaneous, different alarms to warn of dangers such as high winds, freezing temperatures, rain rate, flood warning, and more.
  • WIND SPEED
    See windspeed updates every 2.5 seconds. Displays windspeed in miles per hour, meters per second, kilometers per hour and knots. Provides the average and high wind speed for two-minute and ten-minute intervals.

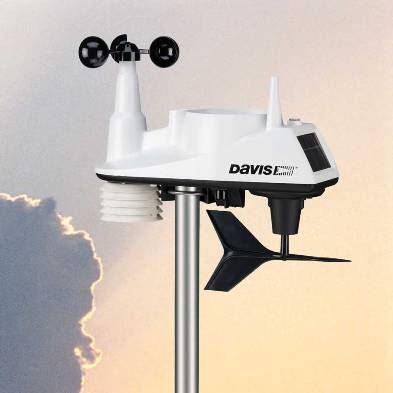

ISS

  • WIRELESS
    Frequency-hopping spread spectrum radio ensures consistent transmission up to 1,000 ft. (300 m) from integrated sensor suite to console.
  • RAIN COLLECTOR
    Self-emptying tipping spoon measures rain with .01" (0.2mm) resolution.
  • ANEMOMETER
    Vantage Vue records wind speeds as low as 2 mph (3 km/h) and as high as 150 mph (241 km/h).
  • WEATHER PROOF COVER
    Corrosion-resistant cover provides durability in extreme conditions. Electronics are potted or over-molded for added moisture shielding.
  • RADIATION SHIELD
    Provides excellent protection from solar radiation and other sources of radiated and reflected heat.
  • TEMPERATURE/RELATIVE HUMIDITY
    Provides outside temperature readings from -40°F to 150°F (-40°C to 65°C). Also measures relative humidity from 0 to 100%.
  • EASY INSTALLATION
    Installs easily and quickly with included mounting hardware kit.
  • WIND DIRECTION
    Measures wind direction in compass points or degrees.
  • SOLAR PANEL
    Energizes the station during the day. On-board super capacitor provides power at night. Lithium battery provides backup when needed.
  • BUBBLE LEVEL
    Allows for more accurate installation and better data collection.

    Available in four versions:
  • US (United States): Some products do not include all features listed.
  • Units of Measure: Data is reported in US standard units.
  • Data Transmission: For products that use wireless radio data transmission, US version uses US radio frequency from 902 to 928 MHz. If product transmits data via cellular connection, the included SIM is for use in the USA only and requires a US Service Plan.
  • Rain Data: For products that report rain data, the rain collector is calibrated to 0.01 inch.
  • Electrical Power Supply: Units shipped with an electrical power supply will have a US power adapter.

    USM (United States, metric): Some products do not include all features listed.
  • Units of Measure: Data is reported in Metric units.
  • Data Transmission: For products that use wireless radio data transmission, USM version uses US radio frequency from 902 to 928 MHz. If product transmits data via cellular connection, the included SIM is for use in the USA only and requires a US Service Plan.
  • Rain Data: For products that report rain data, the rain collector is calibrated to 0.2mm.
  • Electrical Power Supply: Units shipped with an electrical power supply will have a US power adapter.

    UK (United Kingdom): Some products do not include all features listed. Not available for use/purchase within the USA.
  • Units of Measure: Data is reported in Metric units.
  • Data Transmission: For products that use wireless radio data transmission, UK version uses UK radio frequency 868 MHz. If product transmits data via cellular connection, the included SIM is not for use in the USA and may be restricted to specific countries.
  • Rain Data: For products that report rain data, the rain collector is calibrated to 0.2mm.
  • Electrical Power Supply: Units shipped with an electrical power supply will have a UK power adapter.

    EU (Europe): Some products do not include all features listed. Not available for use/purchase within the USA.
  • Units of Measure: Data is reported in Metric units.
  • Data Transmission: For products that use wireless radio data transmission, EU version uses EU radio frequency 868 MHz. If product transmits data via cellular connection, the included SIM is not for use in the USA and may be restricted to specific countries.
  • Rain Data: For products that report rain data, the rain collector is calibrated to 0.2mm.
  • Electrical Power Supply: Units shipped with an electrical power supply will have a Euro power adapter.

Specifications

  • Updates every 2.5 seconds

  • Wireless transmission up to 1,000 ft. (300 m)

  • Frequency-hopping spread spectrum radio for continuous data transmission

  • Solar-powered with stored energy backup

  • Survived cyclic corrosion tests simulating wear in extreme weather environments

  • 22 user-selectable alarms

  • 12-hr forecasts

  • Barometric pressure reporting

  • RAIN COLLECTOR: Reports rain rate and rain totals. Self-emptying tipping spoon measures rain with .01" resolution for US stations and 0.2 mm resolution for USM, EU, and UK stations.

  • ANEMOMETER: Vantage Vue records wind speeds as low as 2 mph (3 km/h) and as high as 150 mph (241 km/h).

  • WIND DIRECTION: Measures wind direction in compass points or degrees.

  • TEMPERATURE/RELATIVE HUMIDITY: Indoor and outdoor temperature and humidity sensors. Provides outside temperature readings from -40°F to 150°F (-40°C to 65°C). Outdoor sensors contained in radiation shield for optimum accuracy. Also measures relative humidity from 0 to 100%.

  • BUBBLE LEVEL: Allows for more accurate installation and better data collection.
